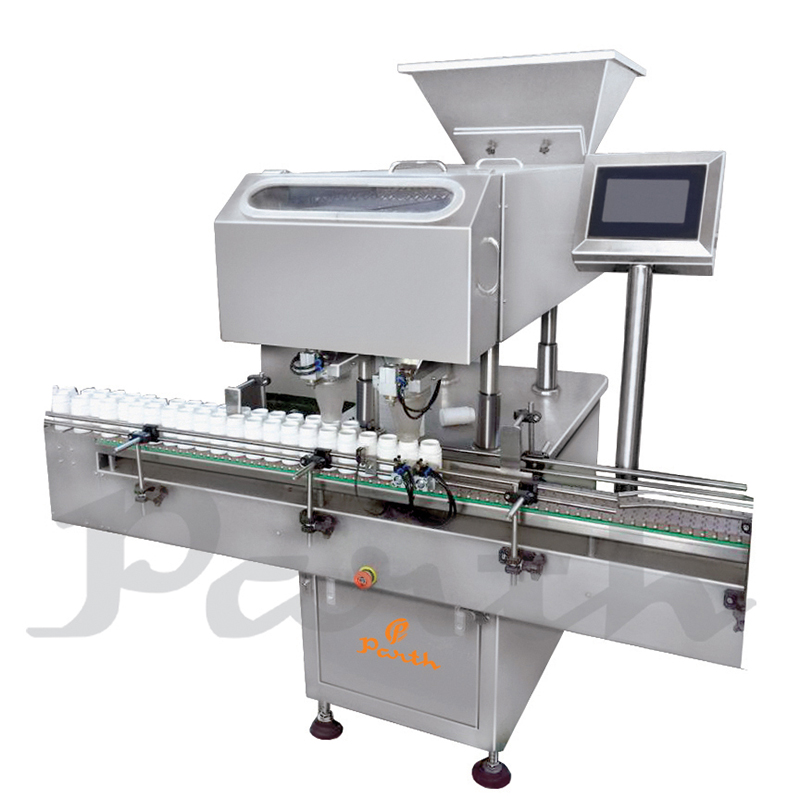

Automatic Tablet Counting Machine

The block bottle device on the passing bottle-track of the conveying bottle system make the bottles which came from the previous equipment stay in the bottling position, waiting to be filled in. The medicine goes into the medicine container in order by the vibration of the feeding corrugated plate. There’s a counting photoelectric sensor installed on the medicine container, after counting of the medicine in the medicine container by the counting photoelectric sensor, the medicine goes into the bottle in the bottling position.

Salient Features of Automatic Tablet Counting Machine

Strong compatibility, It can count and bottle various kind of solid preparation or solid granules for example, tablet (including heteromorphism tablet) capsule soft capsule（transparent and non-transparent) pill etc.
Vibration discharging material: Gentle laying-off by 16 enter closes vibration, with special patented flap partial filling system, the discharging of medicine is homogeneous and stable without damage.
Anti-high dust: Adopting the anti-high dust photoelectric sensing technology only developed by our company, it also can work stably under the high dust circumstance.
Correct counting: With automatic photoelectric sensor counting ,the error of bottling is less Than nation standard.
High intelligence: It has various alarm and control functions like no bottle no count, check fault automatically and so on.
Auxiliary function: Photoelectric sensor can check automatically if there’s no bottle and Stops automatically.
Easy operation: Adopting intellectualized design, all kinds of operation data can be set according to the requirement. It can store 10 groups of setting parameters for use.
Convenient maintenance: After simple training, the worker can operate easily .It is easy to disassembly, clean and change the components without any tools.
Sealing and dustproof: Dust collection box is available, it can reduce the dust pollution. (Optional)

Specification of Automatic Tablet Counting Machine

Applicable bottle shape :round square plastic bottle
Filling material:00~5#capsule、soft capsule、Φ5.5-22compressed tablet special-shaped tablet
sugarcoated tablet，Φ3-20 pill
Production capacity：10-120 bottles per minute(It depends on the bottle size filling quantity and the tablet size
The setting range of bottling volume:1-9999
Power supply：AC220V 50Hz 1.2kw
Accuracy rate: 99.8%(higher than the industrial standard
Air pressure：0.6Mpa.
Overall dimension：660×1280×780mm
Weight：280 kg
