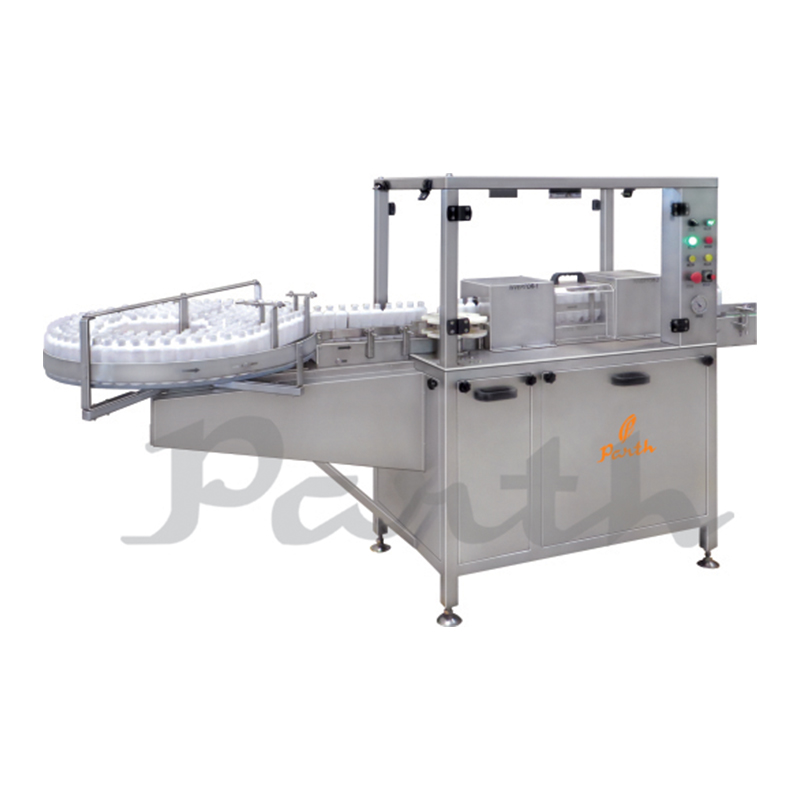

Automatic Air Jet Bottle Air and Vacuum Bottle Cleaning Machine

The Automatic Air Jet Bottle Washing Machine is compact unit totally made of S.S. structure with height adjustment legs, are provided to adjust the machine height and highly efficient machine with elegant look. This multifunctional multi featured machine meets the GMP requirements of washing for glass and plastic bottles. The machine operates on the linear principle with "INVERTER" mechanism and requires manual loading and automatic unloading of bottles.

Operation of Automatic Air Jet Bottle Air and Vacuum Bottle Cleaning Machine

A Machine is inbuilt with Turntable for smooth transfer of container to the Cleaning Section. This machine works with the principal of back pressure of container. Container feed by the Turntable to reach to the separator assembly, which transfers the container to the cleaning section one after the. Machine consists of two Inverters, which inverts container and push it to cleaning section through back pressure of other container, Cleaning section is equipped with continuous vacuum system. Container reaches to the cleaning section a pair of air nozzles starts to flush the air inside the neck of the container and simultaneously vacuum will suck the particles, disturbed by the air. Then container passes to the inverter, where the containers are re-inverted in upright position and then after container moves for next operation.

Technical Specification of Automatic Air Jet Bottle Air and Vacuum Bottle Cleaning Machine

Model PAJC-120 PAJC-200
Output / Hour* 4800 to 7200
Direction of Machine** Left to Right
Power**
Consumption
Main motor 1.0 HP / 415 Volts / 50 Hz
Blower Motor. 0.75 HP / 415 Volts / 50 Hz
Blower Tank Capacity 120 cfm
Working height 850 to 900 mm
Consumption of Air 6 Kg/cm2
Machine Dimension 2175 mm (L) x 780 mm (W) x 1550 mm (H)
Case Dimensions 2500 mm (L) x 1000 mm (W) x 1750 mm (H)
Net Weight 600 kgs
Gross Weight 850 Kgs

Automatic Air Jet Bottle Air and Vacuum Bottle Cleaning Machine Input Specifications:

Round Shape Ø 30 mm to Ø100 mm Respectively height, 50 mm to 270 mm,
Ø 22 to Ø 28 Neck***
Flat / Square 30 mm to 100 mm (Length)
Respectively 10 mm to 50 mm (Width)
Respectively height 58 mm X 190 mm
Note: * Depends on bottle size & operator speed.
** We can supply as per customer requirements.
*** With help of change parts.

Salient Features of Automatic Air Jet Bottle Air and Vacuum Bottle Cleaning Machine

  • Cluth operated starwheel to push the bottle
  • SS Pressure Gauge.
  • Stationary SS nozzles.
  • Positive air pressure and vacuum cleaning.
  • Separate control for air pressure
  • High efficient blower to clean container properly
  • Manual loading and automatic unloading container
  • Easy operating system

Automatic Air Jet Bottle Air and Vacuum Bottle Cleaning Machine Utility Requirement:

Electrical supply 3 Phase + Neutral + Earthing
Electrical load 1.29KW
Air Pressure: Minimum 2 to 4 kg. 15 to 30 CFM
